Reproducible Gallery

All gallery figures are generated by ./scripts/generate_docs_assets.sh. The commands below show the exact render steps used for each published asset.

Beta-Gamma Wheel

This panel combines six renders in \(\beta\)-\(\gamma\) mode at fixed \(\beta = 0.5\) and \(\gamma = 0^\circ, 60^\circ, 120^\circ, 180^\circ, 240^\circ, 300^\circ\).

Command

for gamma in 0 60 120 180 240 300; do
  ./scripts/nucshape shape \
    --output "docs/assets/generated/beta_gamma_wheel/shape_beta_gamma_${gamma}.png" \
    --quadrupole-mode beta-gamma \
    --beta 0.5 --gamma "${gamma}" \
    --theme viridis --transparent --axes all \
    --color-mode deformation --color-scale 0.30 \
    --shadow --shadow-alpha 0.10 \
    --n-theta 60 --n-phi 120 --zoom 1.12
done

./scripts/build_beta_gamma_wheel.py \
  --input-dir docs/assets/generated/beta_gamma_wheel \
  --output docs/assets/generated/beta_gamma_wheel_beta0p5.png

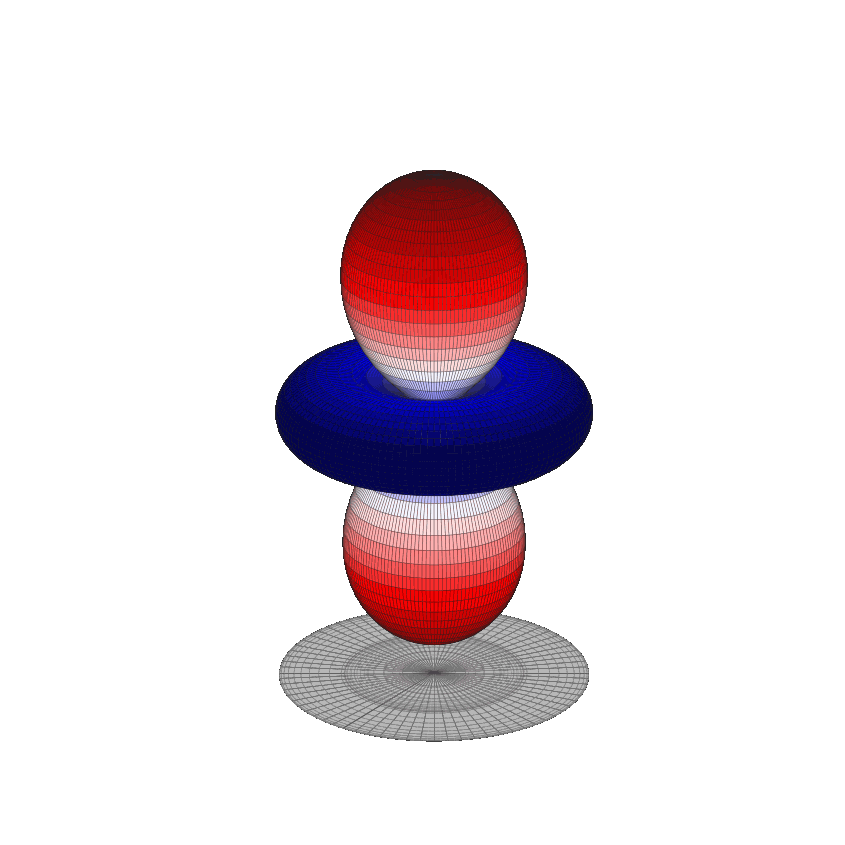

Orbital Mixing

This animation keeps \(l = 2\) fixed and interpolates between \(m = 0\) and \(m = 2\).

Command

./scripts/nucshape orbital-anim \
  --format gif \
  --output docs/assets/generated/orbital_mix.gif \
  --l 2 --m 0 --mix-l 2 --mix-m 2 \
  --mix-weight 0.00 --mix-weight-end 1.00 --mix-weight-cycles 1 \
  --duration-seconds 4 --fps 18 --workers 1 \
  --camera-turns 0 \
  --theme phase --transparent \
  --shadow --shadow-alpha 0.10 \
  --n-theta 72 --n-phi 144

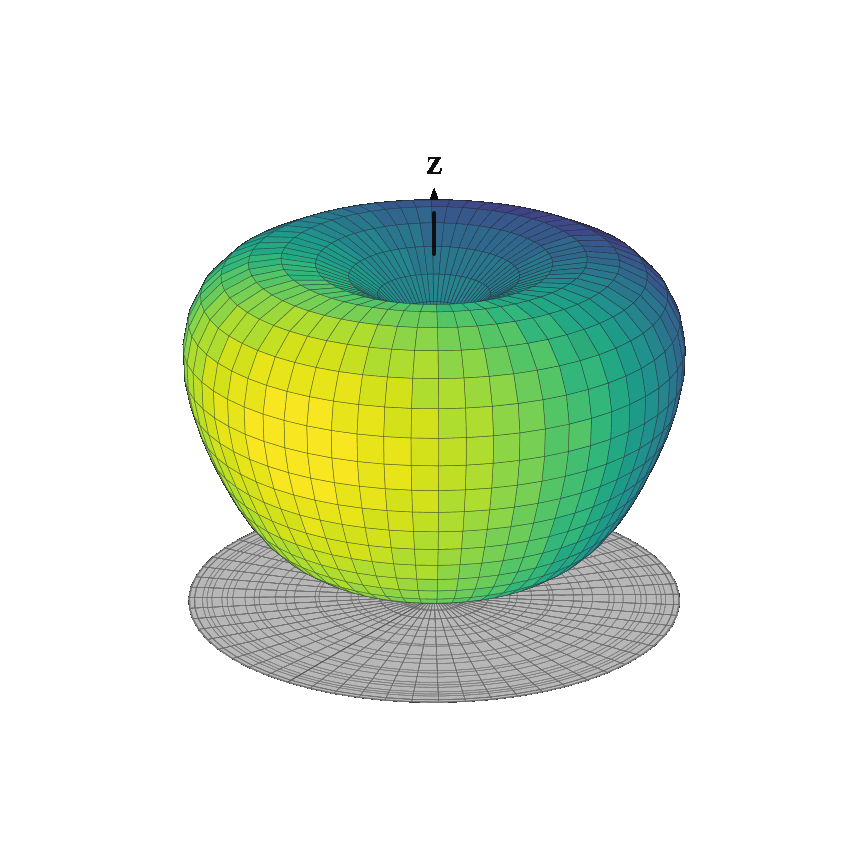

Shape Deformation Sweep

This animation combines \(\beta_2\), \(\beta_3\), \(\beta_4\) and \(\gamma\) sweeps and camera and nucleus rotation.

Command

./scripts/nucshape shape-anim \
  --format gif \
  --output docs/assets/generated/shape_anim_combo.gif \
  --duration-seconds 6 --fps 20 --workers 1 \
  --camera-turns 2 --camera-direction ccw \
  --object-turns-total 1 \
  --object-spin-axis-x 1 --object-spin-axis-y 1 --object-spin-axis-z 1 \
  --beta2 -0.50 --beta2-end 0.50 --beta2-cycles 2 \
  --beta3 -0.30 --beta3-end 0.30 --beta3-cycles 2 \
  --beta4 -0.20 --beta4-end 0.20 --beta4-cycles 2 \
  --gamma 0 --gamma-end 60 --gamma-cycles 2 \
  --theme viridis --transparent --axes z \
  --color-mode x \
  --shadow --shadow-alpha 0.10 \
  --n-theta 30 --n-phi 60

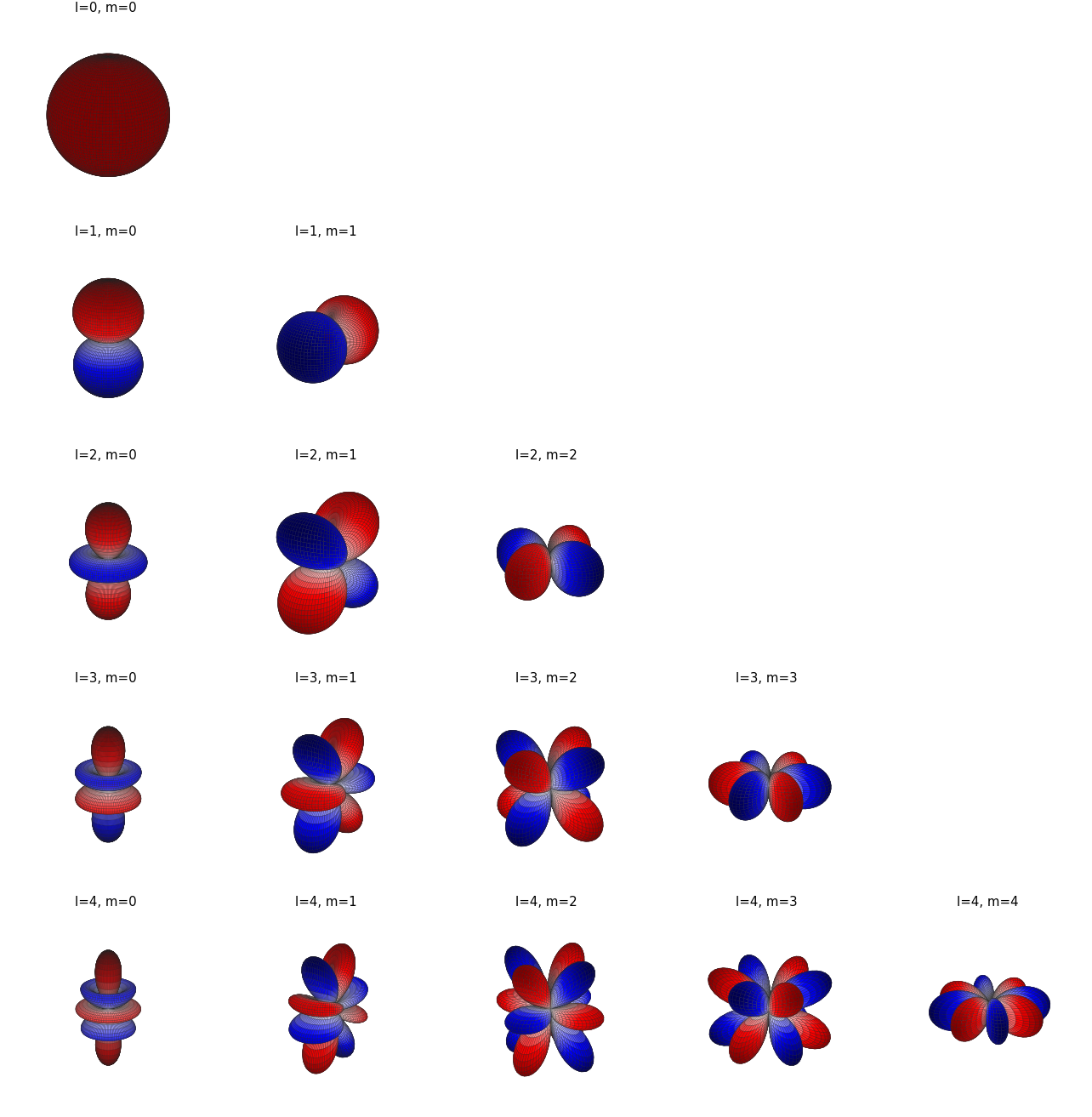

Orbital Table

This triangular table covers all \(0 \le l \le 4\) and \(0 \le m \le l\).

Command

./scripts/nucshape orbital-table \
  --output docs/assets/generated/orbital_table_l0_to_l4.png \
  --l-max 4 \
  --radius-scale 1.0 --power 0.75 --min-radius 0.10 \
  --n-theta 64 --n-phi 128 \
  --table-cell-size 2.2 --dpi 120 \
  --theme phase --transparent --axes none \
  --no-show-mesh
